Print current pageProduct Description
- brief introduction
- technical parameter
- Product size
Application
ZMQ3-G auto-reset over/under voltage time delay protector is a new generation household protective device researched by our company, its control circuit assembled by foreign components, modulus production, high performance, reliability, able to work under abnormal voltage. When the system voltage exceed the tripping value, the protector can cut off power source quickly and reliably, to protect the electric consumers. When the system voltage recover, the protector automatically switch on power source without manual operation. Diode indicator in the panel show the working status of protector, when indicator show green light, it shows the operating voltage, the red lamp does not light, the power supply work normally, when red lamp light, the protector take action to cut off power supply. This product has the features of compact structure, good figure, to be mounted on the rail same as DZ47(C45).

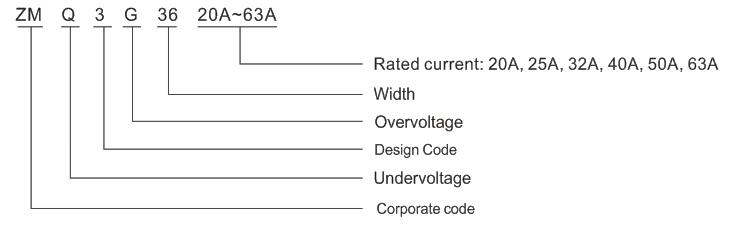

Model

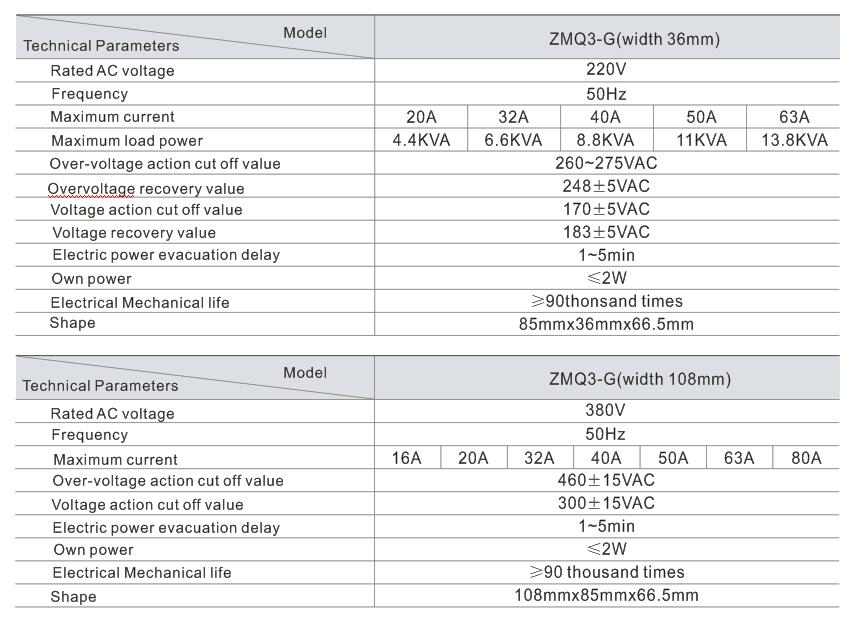

Main technical data

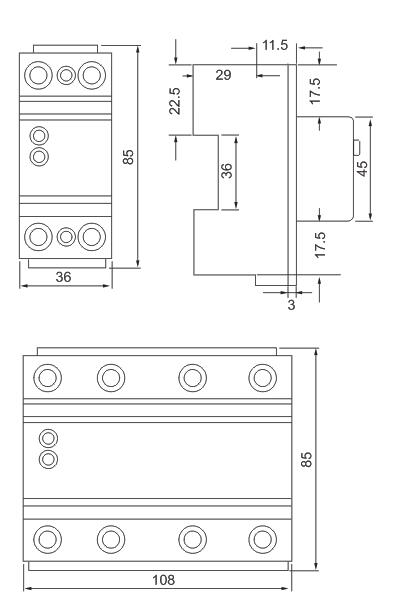

External And Installation Size
