Print current pageProduct Description
- brief introduction
- technical parameter
- Product size
Application
1.Used on low-voltage distribution system to compensate for the inductive reactive power, enhance the power factor of the distribution system and lower transmission loss.
2.Used on low-voltage electrical equipment. Compensate on site to enhance the power factor and the availability of the equipment.
3.Used on low-voltage passive filter to eliminate harmonic wave, improve the power supply quality and enhance the power factor.
4.Used on wind power generation, photovoltaic power generation and other new energy for reactive compensation and filtering.
Product features
1.Qualitative material and advanced process are adopted. The product capacity is precise with low wastage and strong over-current ability.
2.The temperature is low while the product is running. Expected life can be over 10 years with proper use.
3.All-dry structure can prevent oil leakage and pollution.
4.Dry fir-resistant material is stuffed inside the product.
5.Different protections are built in, including overpressure, over temperature and over current.
6.Products are reliable and with no potential hazard like cracking or burning.
7.Various product structures can satisfy different purposes for different customers
Main specification
Rated voltage: 0.1-1kV.
Rated capacity: 1-60kvar.
Dielectric loss: tg ≤0.0002.
Ambient temperature: -25-+50.C.
Altitude:≤2000m.

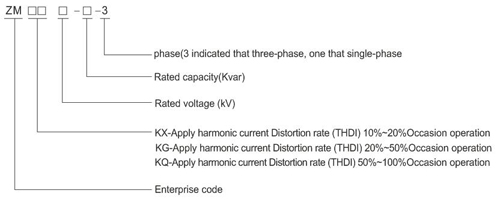

Model and implication

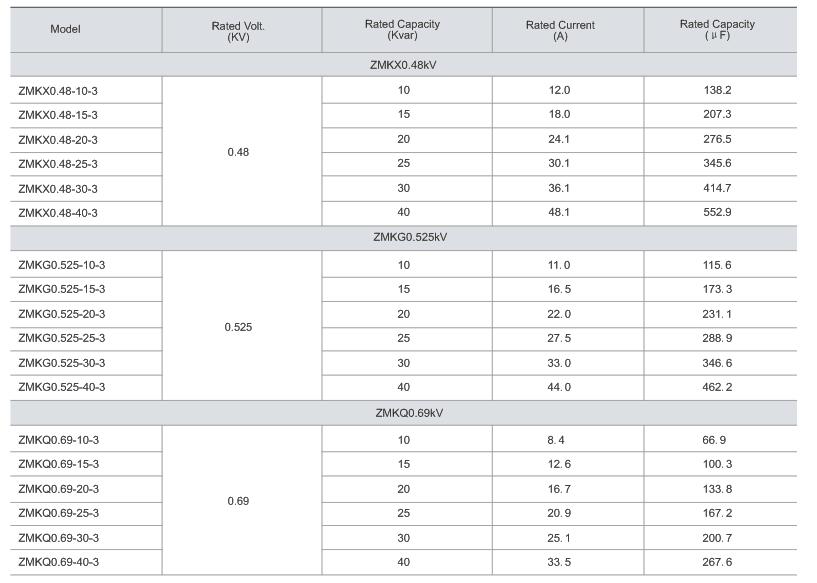

Main technical date
