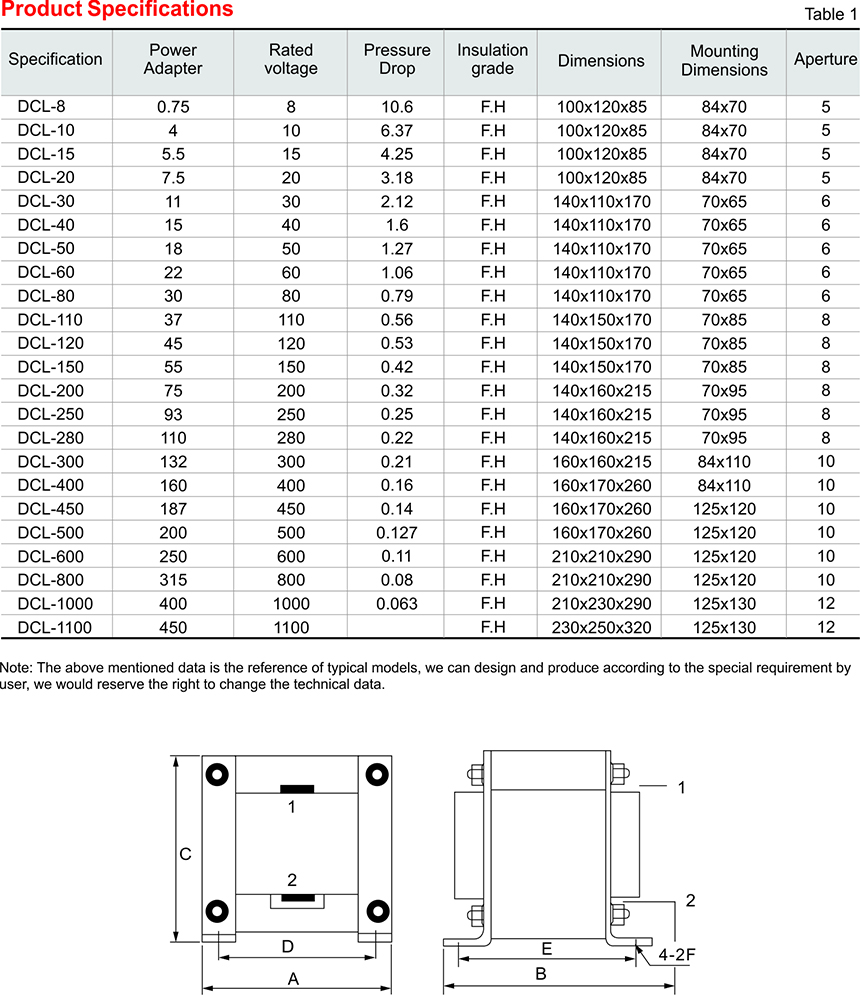

- Product size
General
Improve the input current wave resulted by capacitor harmonics
Reduce and prevent the rectification bridge being damaged and capacitor being overheating due to surging current.
Improve power factor, reduce DC busbar AC pulse.
Restrict the transient change of system voltage
Main Technical data
Rated operating voltage: 400V-1200V/50Hz
Rated operating current: 3A to 1500A @ 40 ℃
Electric strength: iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown;
Insulation resistance: iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of reactor: less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of protection: IP00
Degree of Insulation: F above
Applicable standard: IEC289: 1987 "Reactors"
GB10229-88(eqv IEC289:1987)
GB10229-88"Reactors"(eqv IEC289:1987)
JB9644-1999"Reactor for semi-conductive electric driving use"
