- brief introduction

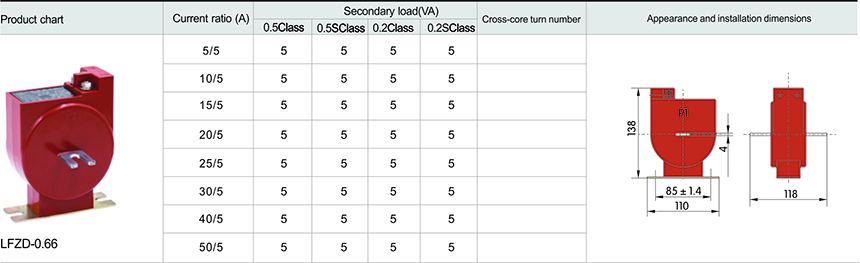

- technical parameter

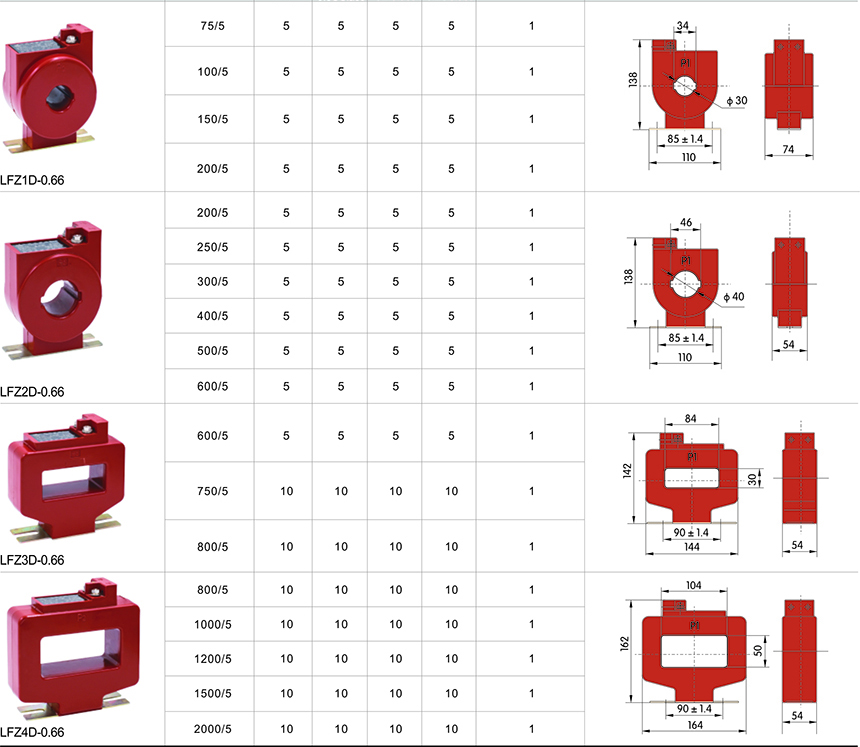

- Product size
Application
LFZD-0.66 or LFZ□D-0.66 Type current transformer is mainly used for indoor, for rated voltage up to and including 0.66kV, rated frequency 50Hz AC circuit as the Current measurement or electrical energy measurement, The product is an unsaturated resin casting method, and the fixed installation method is adopted.
Standard: GB20840

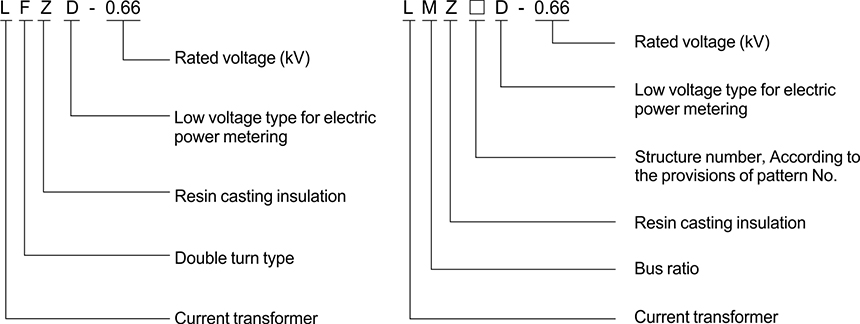

Code and implication
Normal working/installation conditions
1. Installation sites: Indoor
2. Ambient temperature : (-5~40)℃
3. Ambient humidity: ≤80%
4. Altitude: ≤1000m
5. Atmospheric conditions: no serious impurity in the atmosphere.
Ordering instructions
When the customer ordering, must provide the following information:
1product model and Install the bus width;
2, current ratio;
3, rated output, and the corresponding accurate level;
For example: solid order LMZ1D-0.66, Bus width is 30mm,rated output current ratio 150/5 A and 5 VA,Accurate magnitude 0.5 magnitude of transformer.
The order code for LMZ1D-0.66 150/5A 5 VA a magnitude of 0.5.
4, if you have special requirements, can be customized consultation with the manufacturer.
The installation accessories
